Import or Update or Export Workflows

You can import or update or export workflows, if required. Click respective tabs for details.

note

For examples of import or updated or export workflows, see Appendix: Publish Workflows.

Import workflows

You can import workflows of another tenant if you want to use them. The workflows are imported as zip file.

note

A project exported from Process Studio cannot be imported or updated directly on an AutomationEdge instance.

To import a workflow:

1. In the menu, click Workflows → Workflow List. The Workflows page appears.

2. On the page, click Import. The Create New Workflow page appears.



3. Enter the following field details:

   Field name	Description
   Workflow Name *	Enter a name of the workflow.
   Version Tag	Enter the version tag. For example, 1.0.
   Workflow Description (Maximum 128 Characters) *	Enter a description for the workflow.
   Workflow Category	Select the category to which you want to upload the workflow.
   Assisted Workflow	Select the checkbox if you want to make the workflow as an assisted workflow.
   Enable RDP	Select the checkbox if you want the workflow to be RDP enabled.
   Select Workflow File(.zip) *	Click, browse, and select the zipped workflow file that you want to import.

   *Indicates a mandatory field.

4. Click Show file content. The content of the zipped workflow appears.

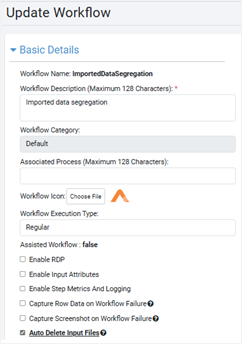

5. Click Create. The workflow is imported and the Update Workflow page appears.



note

For field details, see Edit workflow configuration.

6. Update the workflow details and click Save. The workflow appears on the Workflows page.



7. In the Status column, toggle the switch to activate the workflow. The import process is complete.

Update a workflow

You can update the workflow, if required.

To update the workflow:

1. In the menu, click Workflows → Workflow List. The Workflows page appears.

2. On the page, click and then select Update. The Update Workflow page appears.



3. Enter the following field details:

   Field name	Description
   Select Workflow *	Select the workflow that you want update.
   Version Tag	Enter the version tag. For example, 1.0.
   Select Workflow File(.zip) *	Click, browse, and select the zipped workflow file that you want to import.

   *Indicates mandatory field.

4. Click Update. The workflow is updated and appears in the Workflows page.

Export a workflow

You can export the workflow that can be shared with other tenants.

To export a workflow:

1. In the menu, click Workflows → Workflow List. The Workflows page appears.

2. On the page, click and then select Export. The Export Workflow dialog appears.



3. In the dialog:

   • Select Workflows (Maximum 10)*: Select the workflows that you want to export. You can select a maximum of 10 workflows.

   • Export as Verified: Select the checkbox if you want to indicate that the workflow is thoroughly tested.

4. Click Export. The workflow is exported (downloaded) as a zipped file.
