Understand Process Studio user interface
In the chapter, you will learn about Process Studio user interface. It will help you to easily navigate and use the various features of the application.
This chapter includes the following topic:
Understand the user interface

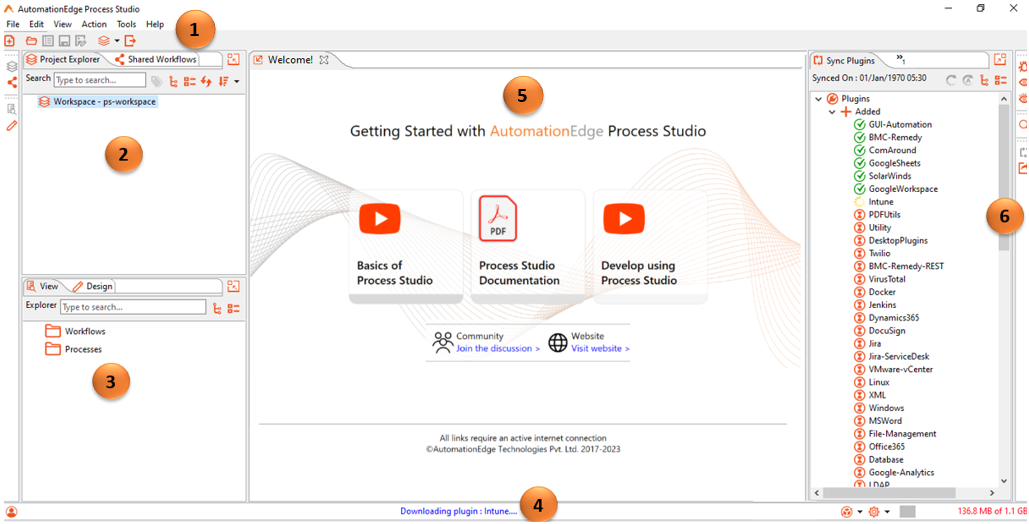

Figure 11: Process Studio user interface
| Label | Interface | Usage |
|---|---|---|
 | Menu bar and Toolbar | - Menu bar: Displays various menu options to work with in Process Studio. |
| - Toolbar: Displays various tools to use instead of menu options. | ||
 | Project Explorer and Shared Workflows | - Project Explorer: Displays the name of the workspaces and list of projects, workflows, and processes. |
| - Shared Workflows: Displays the list of workflows that are available for all users of the tenant. | ||
 | View and Design | - View: Displays the components, such as steps, database connections, hops, and process entries of in focus workflow or height process. |
| - Design: Displays alphabetized list of steps or entries that you can use in workflow or process. | ||
 | Status bar | Displays the following: - User profile: Displays the details of the user. |
| - Progress bar: Displays the current action in-progress in the Process Studio. For example, Downloading plugin: Intune. | ||
| - Total Steps or Entries: Displays the step or entry details if a workflow or process is open. | ||
| - Project Options: Displays a contextual menu with various options to perform actions on a project. | ||
| - Quick Settings: Displays a contextual menu for allowing you quick setting. | ||
| - Memory usage: Displays memory usage details. | ||
 | Canvas | Click the video or document links available under the Welcome tab, which is open by default. |
| When working to build your workflows or processes, drag-and-drop steps or entries on the canvas. | ||
 | Sync Plugin and Sync Shared Workflow Debugging and Search | - Sync Plugins: Displays the list of new, updated, and deleted plugins. The new and updated plugins are synced. |
| - Sync Shared Workflows: Displays the list of shared workflows ready for syncing. | ||
| The Debugging pane displays three tabs, Breakpoints, Watch Variables, and Watch Fields. | ||
| - Breakpoints: View all breakpoints in all projects in the currently active workspace. | ||
| - Watch Variables: Add or update variables to watch during the workflow or process execution in debug mode. | ||
| - Watch Fields: Add and update fields to monitor it during the debugging process. | ||
| The Search pane, allows you to search values in a workspace, workflow, or process. |
tip
To maximize canvas area, click
in individual panes.
Menu bar
The following table lists the menu options available in Process Studio:
| Menu | Menu options | Description |
|---|---|---|
| File | New | Use to create new project, workflow, process, or database connection. |
| - New Project | ||
| - Edit Project | ||
| - Workflow | ||
| - Process | ||
| - Database Connection | ||
| Open... or CTRL + O | Use to open existing files, workflow, or process. | |
| Open Recent | Use to open recently created workflow or process. | |
| Close or CTRL + W | Use to close the currently open project, workflow, or process. | |
| Close All or SHIFT + CTRL + W | Use to close all projects, workflows, or processes. | |
| Save or CTRL + S | Use to save the currently open project, workflow, or process. | |
| Save as... | Use to save the project with another name. | |
| Print... | Use to print the workflow or process view. | |
| Publish | Use to publish the created project to AE UI. | |
| - Create | ||
| - Update | ||
| Import | Use to import projects or workflows and process as projects. | |
| - Import Sample Projects | ||
| - Import Project | ||
| - Import | ||
| workflow/process as Project | ||
| - Import workflow from server | ||
| Export Project | Use to export the project to another workspace. | |
| Switch Workspace | Use to switch from the current workspace to another. | |
| Exit | Use to exit Process Studio. | |
| Edit | Undo or CTRL + Z | Use to undo the last action in the workspace. |
| Redo or CTRL + Y | Use to redo the last action in the workspace. | |
| Cut or CTRL + X | Use to cut the steps or entries from the canvas. | |
| Copy or CTRL + C | Use to copy the steps or entries from the canvas. | |
| Copy File | Use to copy a file from the canvas. | |
| Paste or CTRL + V | Use to paste the cut or copied steps or entries on the new canvas. | |
| Snapshot Canvas or CTRL | ALT | |
| Clear or ESC | Use to clear the selection of steps or entries on canvas. | |
| Select all or CTRL + A | Use to select all the steps or entries on canvas. | |
| Search Meta data or CTRL + F | Use to search metadata in steps or entries, parameters, PS variables, database connections, or notes of a workspace, project, and workflow or process. | |
| The result of the search appears in the Search tab. | ||
| Workflow/Process Properties or CTRL | ENTER | |
| View | Perspectives | Use to integrate Process Studio with source code control systems, such as Git and SVN. |
| - Process Studio | ||
| - Git/SVN | ||
| Zoom in or PAGE-UP | Use to enlarge the view of the canvas. | |
| Zoom out or PAGE-DOWN | Use to decrease the view of the canvas. | |
| 100% or HOME | Use to reset the canvas view to 100%. | |
| Refresh or F5 | Use to refresh the view. | |
| Group / Ungroup | Use to group or ungroup the steps or entries in a workflow or process. | |
| View Group | Use to view the steps or entries in a workflow or process. | |
| Execution Results | Use to view workflow or process execution results, such as Logging, Step Metrics, Metrics, Preview data, and Debug. | |
| Action | Run or F9 | Use to execute the opened workflow or process. |
| Run Options... or Ctrl+F9 | Use to execute the opened workflow or process using various log level options, such as: | |
| - Nothing | ||
| - Basic | ||
| - Error | ||
| - Minimal | ||
| - Detailed | ||
| - Debug | ||
| - Row Level (very detailed) | ||
| - Warning | ||
| Run Project or Ctrl+Shift+F9 | Use to execute the complete project. | |
| Preview | Use to preview the workflow. | |
| The option is available only for open workflow. | ||
| Replay | Use to replay the workflow or process. | |
| Debug or F10 | Use to debug the workflow. | |
| Debug Project or Ctrl+F10 | Use to debug the project. | |
| Debug All Rows or Ctrl+Shift+F10 | Use to debug all rows of the workflow. | |
| Verify or F11 | Use to verify the workflow or process details. | |
| Verify Project or Ctrl+F11 | Use to verify the project details. | |
| Tools | Spy | Use to spy components of a desktop, remote machines, and graphical user interfaces. |
| - Desktop Spy or CTRL+ALT+D | ||
| - Surface Spy or CTRL+ALT+S | ||
| - GUI Spy or CTRL+ALT+W | ||
| - Web Spy [Classic] or CTRL+ALT+X | ||
| Sync | Use each sub-menu to: | |
| - Plugins or F6 | - Sync new or updated plugins with existing plugins. | |
| - Shared | ||
| Workflows or Ctrl+F6 | - Sync workflows shared with the user. | |
| - Inspection Rules or Ctrl+Shift+F6 | - Sync inspection rules created through AE UI. For more information, see **Workflows 🡪 | |
| Inspection** section in the AutomationEdge User's Guide. | ||
| - Server Credentials or Ctrl+F7 | - Sync the AE server credentials as and when required. | |
| Show plugin information... | Use to view information of plugins. | |
| Show workflow inspection rules | Use to view the list of inspection rules configured through AE AUI. | |
| Options | Use to update the general details of Process Studio and the look and feel of the canvas. | |
| Check for Updates or CTRL+U | Use to check if there are any new or updates to existing plugins. | |
| Clear all browser instances (Web-GUI [Classic] plugin) | Use to close all the currently open browser instances of the Web-GUI [Classic] plugin. | |
| Clear all browser instances | Use to close all the currently open browser instances. | |

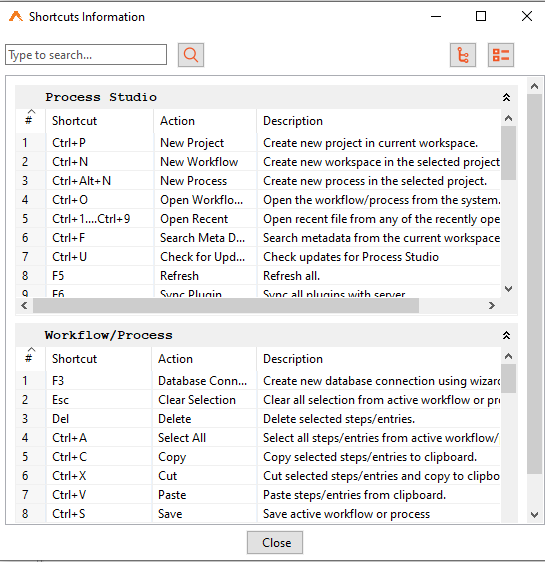

| Help | Shortcuts or F7 | Use to view the list of shortcut keys used in the Process Studio. You will see shortcuts specific to the Process Studio and workflows and processes. |
 | ||
| Welcome Screen | Use to open and view the *Welcome tab. | |
| About | Use to view the details of the current Process Studio release. |
tip
The usage of menu option is explained in the following chapters or topics, as required.
Toolbar
The following tables list the tools available on the toolbar in the Process Studio:
| Toolbar icon | Description |
|---|---|
| Main toolbar: | |
 | |
 | Use to create new workflow, process, or database connection. |
 | Use to open an existing workflow, process, or resource file. |
 | Use to explore repositories. |
 (Save current file) | Use to save the current workflow or process. |
 | Use to save the workflow or process with another name and in another project, if required. |
 | Use to integrate Process Studio with source code control systems, such as Git and SVN. |
 (Deregister Process Studio) | Use to deregister a Process Studio. |
| Workflow or Process toolbar: | |
 | |
| Use to execute the opened workflow or process using various log level options, such as: |
| For the list of execution options, see [Run Options... Ctrl | |
- Use  to hide the execution results pane in a workflow or process. It appears only after a workflow or process is run. | |
- Use  to unhide the execution results pane in a workflow or process. It appears only if the execution results pane in a workflow or process is hidden. | |
 (Pause the running workflow) | Use to pause the running workflow. |
| The option is available only for an open workflow. | |
 | Use to stop the currently running workflow or process. |
| (Stop the running workflow or process) | |
 (Preview this workflow) | Use to preview the workflow. The option is available only for an open workflow. |
 | Use to debug the workflow, all rows, or project. |
| (Debug this workflow) | The option is available only for an open workflow. |
 | Use to replay the workflow or start or restart the process. |
| (Replay this workflow) OR | |
| (Start or re-start the process from the selected process entry copy) | |
 | Use to view the inspection report listing the rule, brief details about the rule, and entity list. |
| (Inspection Report) | |
 | Use to verify a workflow, process, or project. |
| (Verify this workflow or Process) | |
 | Use to analyze the impact of the current workflow on the database. |
| The option is available only for an open workflow. | |
| (Analyze the impact of this workflow on the database(s)) | |
 | Use to generate the SQL needed to run the workflow or process. |
| (Generate the SQL needed to run this workflow or process) | |
 | Use to explore one of the available database connections. |
| (Explore one of the available database connections) | |
 | Use to view the Execution Results pane. |
| (Show the execution results pane) | |
 | Use to locate in which project the current workflow or process appears. The workflow or process is highlighted in the Project Explorer. |
| (Locate in Workspace or Ctrl + L) |  |
| The feature is especially useful when you have workflows with same name listed in different projects. | |
| Use to view the hierarchy of a workflow or process from the main file specified in the project**.** |
| (Open References) | |
 | Use to zoom in or zoom out the canvas view. |
| Project Explorer and Shared Workflows toolbar: | |
 | |
 | Use to search for a project, workflow, process, or shared workflow. |
| (Search) | |
 | Use to expand the tree view in the Project Explorer or Shared Workflow tab, respectively. |
| (Expand All) | |
 | Use to collapse the tree view in the Project Explorer or Shared Workflow tab, respectively. |
| (Collapse All) | |
 | Use to refresh the view. |
| (Refresh) | |
 | Use to sort the projects in various ways. |
| (Sort Projects) | The tool is only available in the Project Explorer tab. |
 | Use to search for tags in the shared workflows. |
| The tool is only available in the Shared Workflows tab. | |
| (Search for tags too) |
tip
The usage of tools is explained in the following chapters or topics, as required.
Status bar
The following tables list the tools available on the status bar in the Process Studio:
| Toolbar icon | Description |
|---|---|
 | Use to view the user profile details, such as name and role of the user, organization, server URL, and the date and time when Process Studio was last synced. |
| Total Steps | Use to view the workflow or process details. The option is available only if a workflow or a process is open in the canvas. |
| OR | Following are the details you can view: |
| Total Entries | |
| - Total Steps or Entries: Displays the count of total steps or entries in the workflow or process, respectively. | |
| - Shared workflow steps or entries: Displays the count of steps or entries of a shared workflow, if used in the current workflow or process. | |
| - Loop steps: Displays the count of looping steps used in the workflow. The detail is unavailable in a process. | |
| - Try-Catch steps: Displays the count of try-catch steps used in the workflow. the detail is unavailable in a process. | |
| - Executor steps or entries: Displays the count of executor steps in workflow or process. | |
| - Metering units: Displays the units of steps or entries consumed in the workflow or process. | |
 | Use to create a project, export or import a project, publish a project, or view the metering unit details of the current workflow or process. |

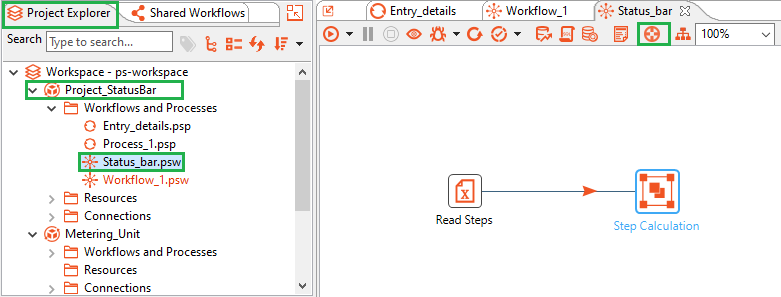

| - Ensure to set the main workflow or process, if you want to view the metering unit details. | |
| - If no workflow or process is open, click the icon and create a project through the Create Project option. Also, only the Import Project option is available in the dropdown. | |
 | Use to complete recurring tasks quickly. |
| Click the icon to access the Process Studio Options dialog. | |
| Memory details | View memory details of the Process Studio, such as maximum available memory, currently allocated memory, and the memory in use. |
tip
The status bar is displayed by default. However, to hide the bar, go to Tools 🡪 Options 🡪 Look & Feel tab, and clear the Show Status Bar checkbox.
To view the bar again, re-select the checkbox.
