Download Process Studio
The topic explains how to download Process Studio for Windows or Linux.
Prerequisites
Process Studio license is assigned to the user. For assigning licenses, see Process Studio: Assign License in AutomationEdge User’s Guide.
To download the Process Studio:

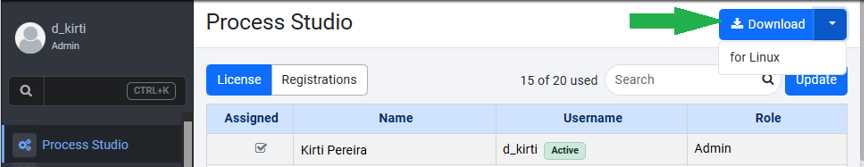

In AutomationEdge, go to Process Studio menu. On the Process Studio -> Registrations page, click Download.
The downloaded Process Studio folder is suffixed with the Tenant Organization Code (org code). For example, Process-Studio-CLOUD_TRIAL.zip when org code is CLOUD_TRIAL.
The downloaded Process Studio is bundled with Java for the corresponding OS.
Use the bundled Java, as it automatically updates when the Process Studio is auto-updated each time.
Start Process Studio in proxy server environment (optional)
If the user has a proxy server setup in the environment, add proxy details to startup scripts to connect to AutomationEdge through Process Studio through the internet.
Download the proxy configuration file <Tenant Name>-proxy-config.properties from AutomationEdge UI Proxy Settings or Agent Download, and copy to <Process Studio> folder.
For details on how to download proxy configuration file, see AutomationEdge User’s Guide.
