Gen AI

Description

This plugin step is utilized to call LLM APIs, enabling the use of various models from different providers, such as OpenAI, based on the configuration.

Reference Links:
OpenAI API Refrence link: https://platform.openai.com/docs/api-reference/chat

Example:

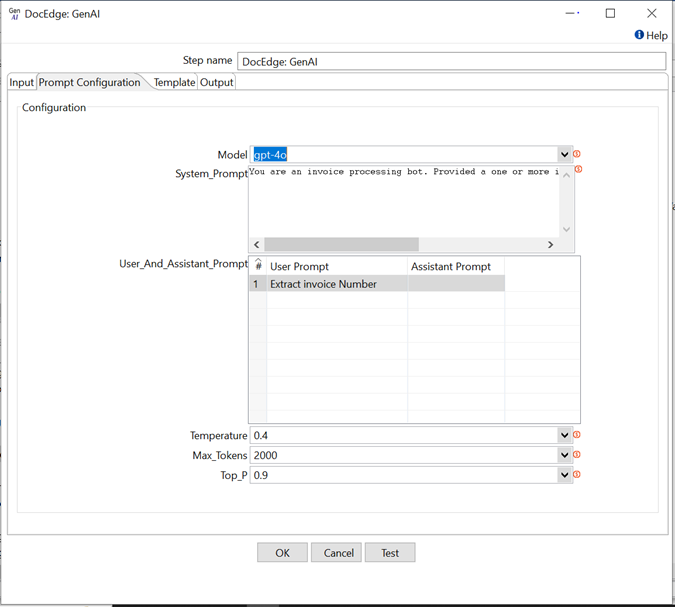

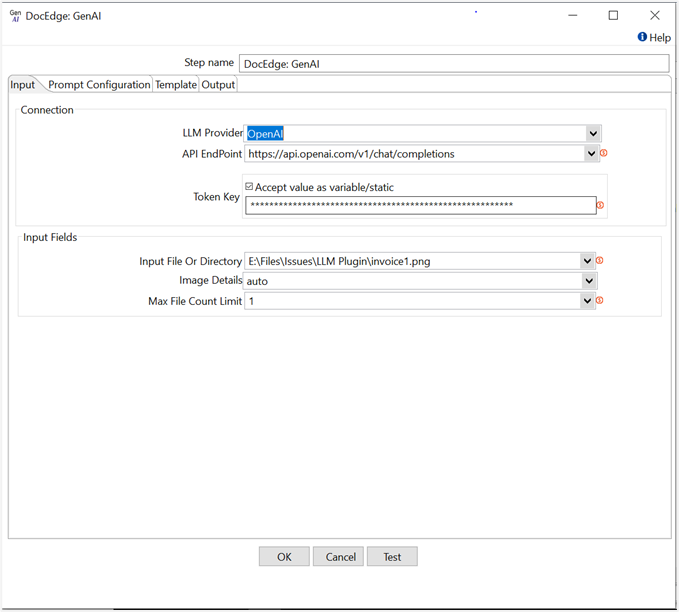

In the following example, We are extracting invoice number from invoice document using gpt-4o model of OpenAI.

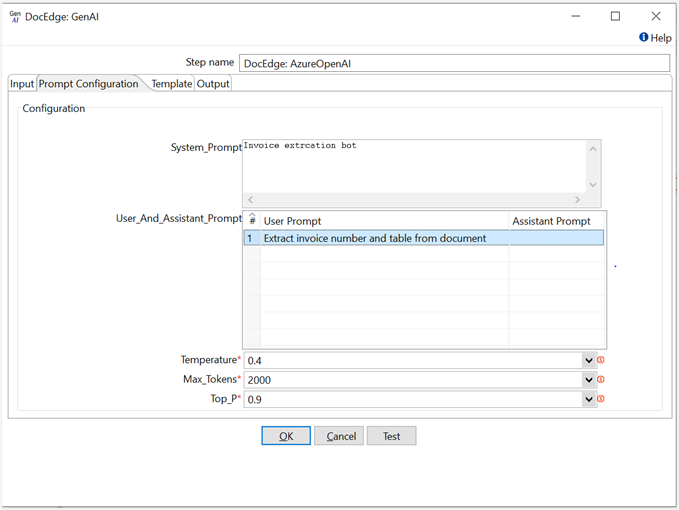

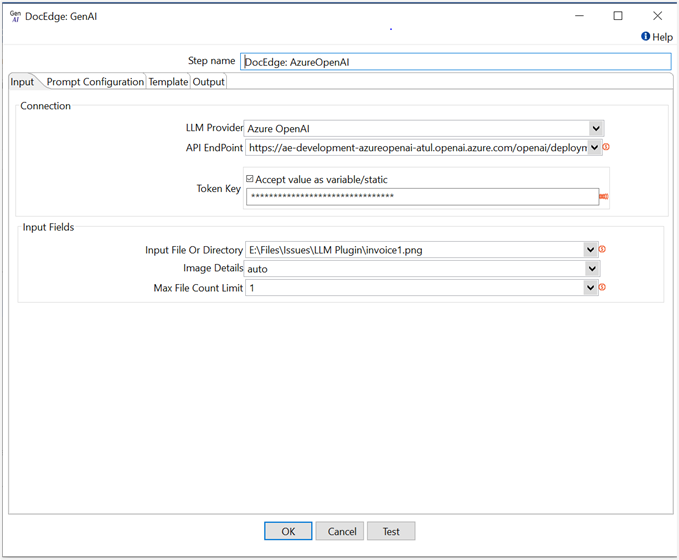

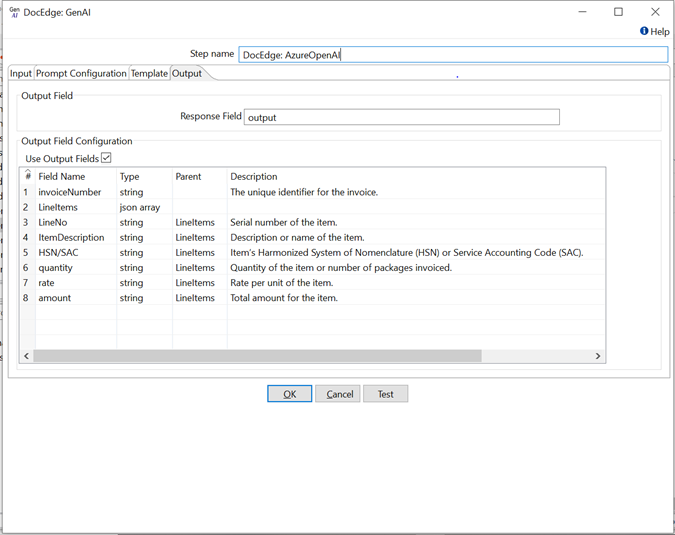

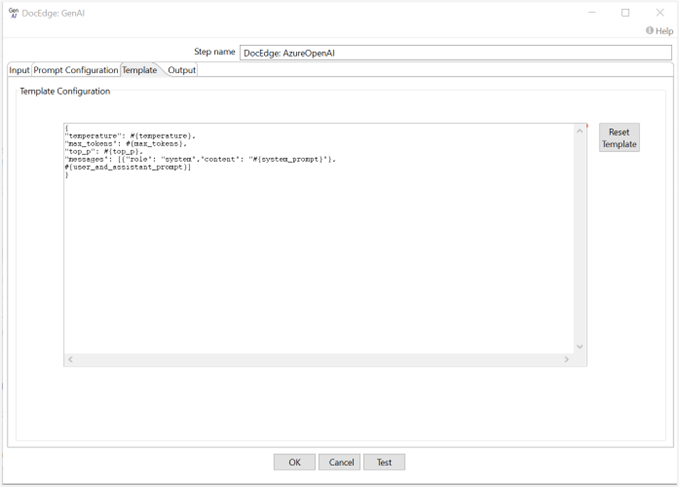

In the following example, we are extracting invoice number and table data(Using Output field configuration) from invoice document using gpt-4o model of Azure OpenAI.

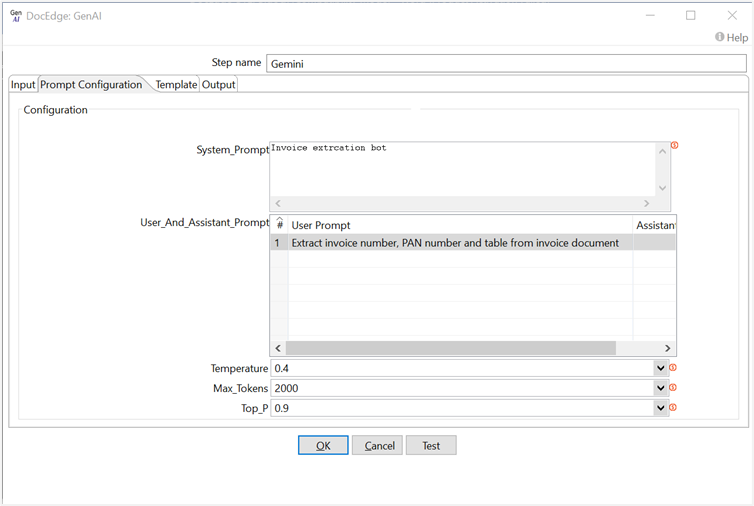

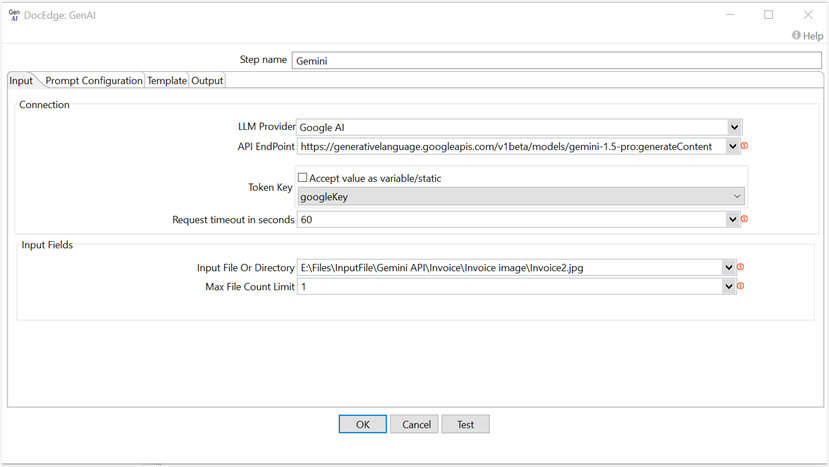

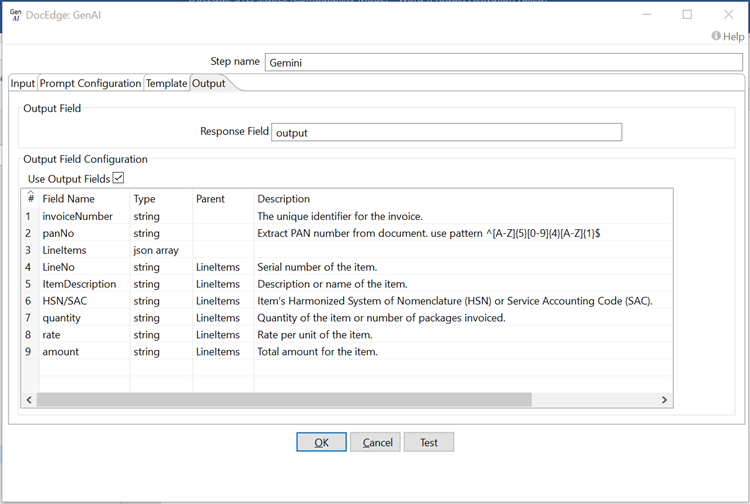

In the following example, we are extracting invoice number, PAN number and table data (Using Output field configuration) from invoice document using gemini-1.5-pro model of Google AI.
Data extraction prompt: Extract invoice number, PAN number and table from invoice document

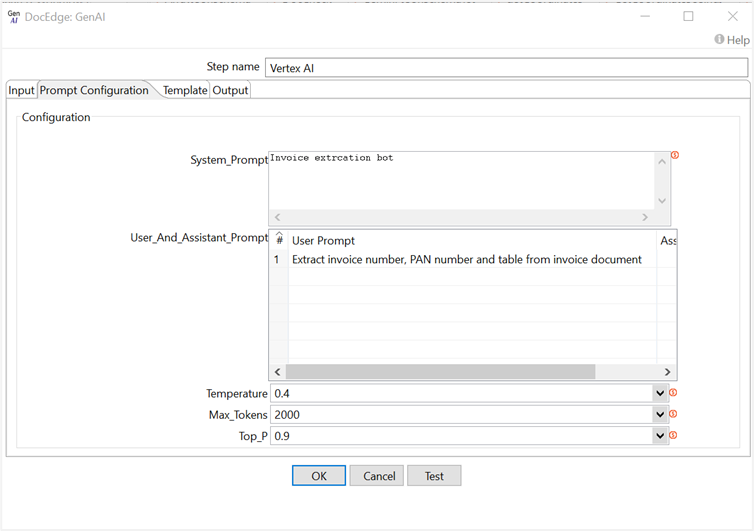

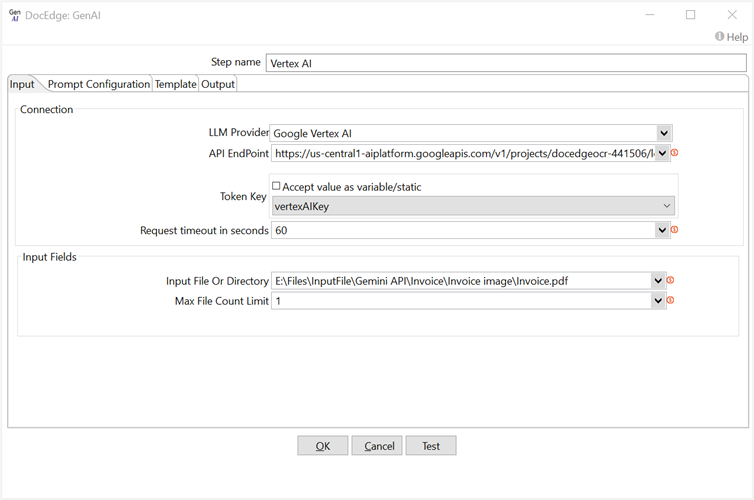

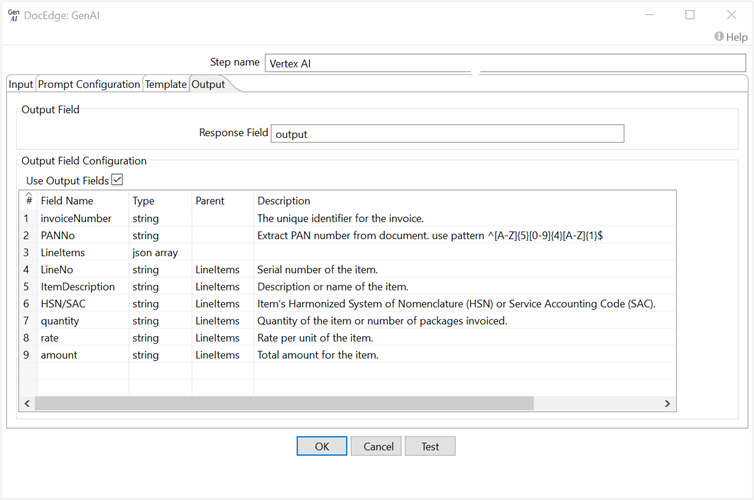

In the following example, we are extracting invoice number, PAN number and table data (Using Output field configuration) from invoice document using gemini-1.5-pro model of Google Vertex AI.

Data extraction prompt: Extract invoice number, PAN number and table from invoice document

Configurations

Field Name	Description
Step Name	Name of the step. This must be unique in a single workflow. The field is mandatory.
LLM Provider	LLM Provider name. Default value: OpenAI.
API EndPoint	LLM provider API endpoint for accessing the service. The field is mandatory.
Token Key	API token key for authentication. If the checkbox Accept Value as variable/static is selected, then the password field appears as a text box and accepts static or variable values. OR If the checkbox Accept Value as variable/static is not selected, then the password field appears as a dropdown in which you can select a field from the previous steps.
Request timeout in seconds	API request timeout in seconds. Default value is 60 seconds. The field is mandatory.
Input Tab
Input File Or Directory	Input File Or Directory path.
Max File Count Limit	Limit count for processing files from the input directory. Default value: 1.
Image Details	This parameter controls the resolution in which the model views the image. Default value is auto.
Test	Click Test to verify the connection is established successfully by checking the provided credentials and connection details.
Prompt Configuration Tab
Model	Select the Model name. The field is mandatory.
System_Prompt	Overall behavior, tone, or role of the model for the conversation. It provides context or guidelines that influence how the model should respond. The field is mandatory.
User_And_Assistant_Prompt
User Prompt	Input or questions provided by the user. This is the text that the model responds to. The field is mandatory.
Assistant Prompt	Assistant prompt serves as the response to the user's input/prompt.
Temperature	Temperature value range is between 0 and 2. Higher values like 0.8 will make the output more random, while lower values like 0.2 will make it more focused and deterministic. Default value: 0.4. The field is mandatory.
Max_Tokens	The maximum number of tokens that can be generated. Default value is 2000. The field is mandatory.
Top_P	top_p value range is between 0.1 and 1. This parameter is used to control the diversity of the generated text. Default value is 0.9. The field is mandatory.
Template Tab

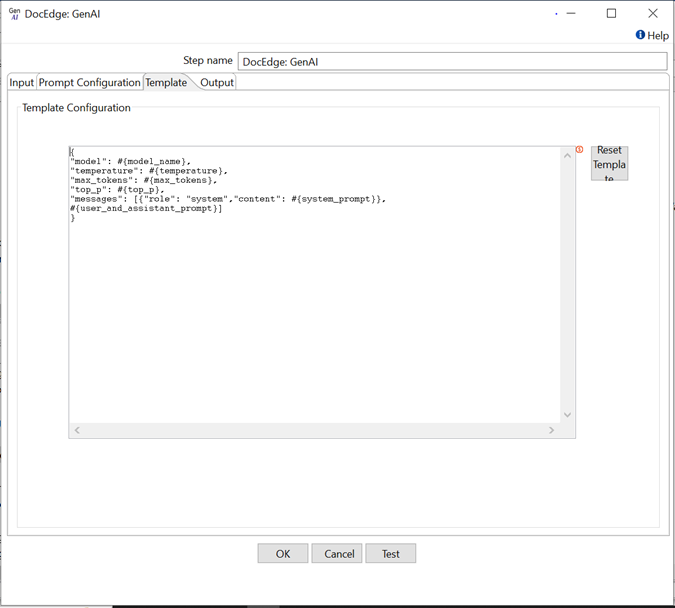

Template Configuration	Template Configuration is the default JSON template used to make requests to LLM APIs. The placeholder #{model_name} pulls values from the Configuration tab fields. You can also include input fields and variables in the Template Configuration, such as? {modelName} for input fields and ${modelName} for variables.
Reset Template	Click Reset Template, to replace the existing template with default template in Template Configuration.

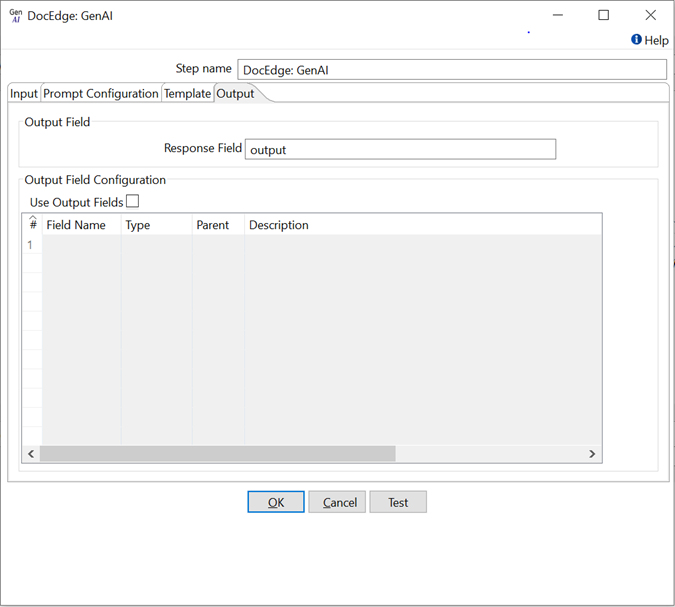

Output Tab
Response Field	Response text from the LLM API. Default Response field name: OutputText
Output Field Configuration	Output field configuration allows us to obtain a structured output and include output fields in the response.
Use Output Fields	Enable or disable the checkbox to use the Output Field Configuration.
Field Name	Output Field name. The field is mandatory.
Type	Select Type of Output Field, that is, string, json array, integer, Boolean, number. The field is mandatory.
Parent	Parent of Output Field. Parent Field type should be json array
Description	Provide a description of the Output Field to retrieve its value in the response.

Supported Input File Extension:

No.	LLM Provider	Extensions
1	OpenAI	jpg,png,jpeg
2	Azure OpenAI	jpg,png,jpeg
3	Google AI	pdf,jpg,jpeg,png,txt,json,csv,html,css,py
4	Google Vertex AI	pdf,jpg,jpeg,png,txt,json,csv,html,css,py
